Lo-Ligo

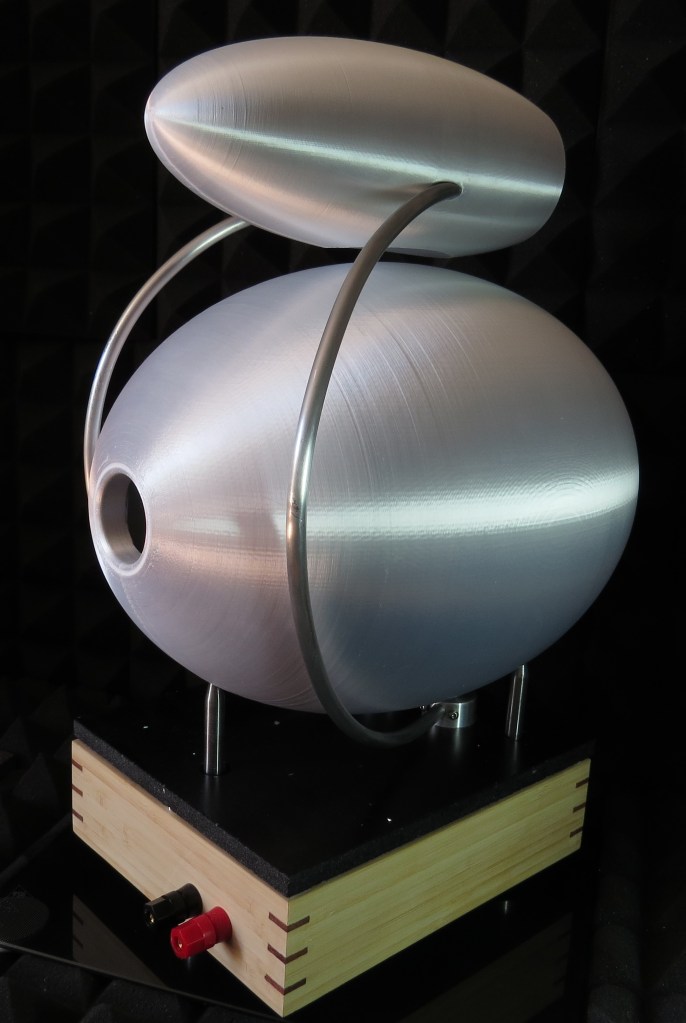

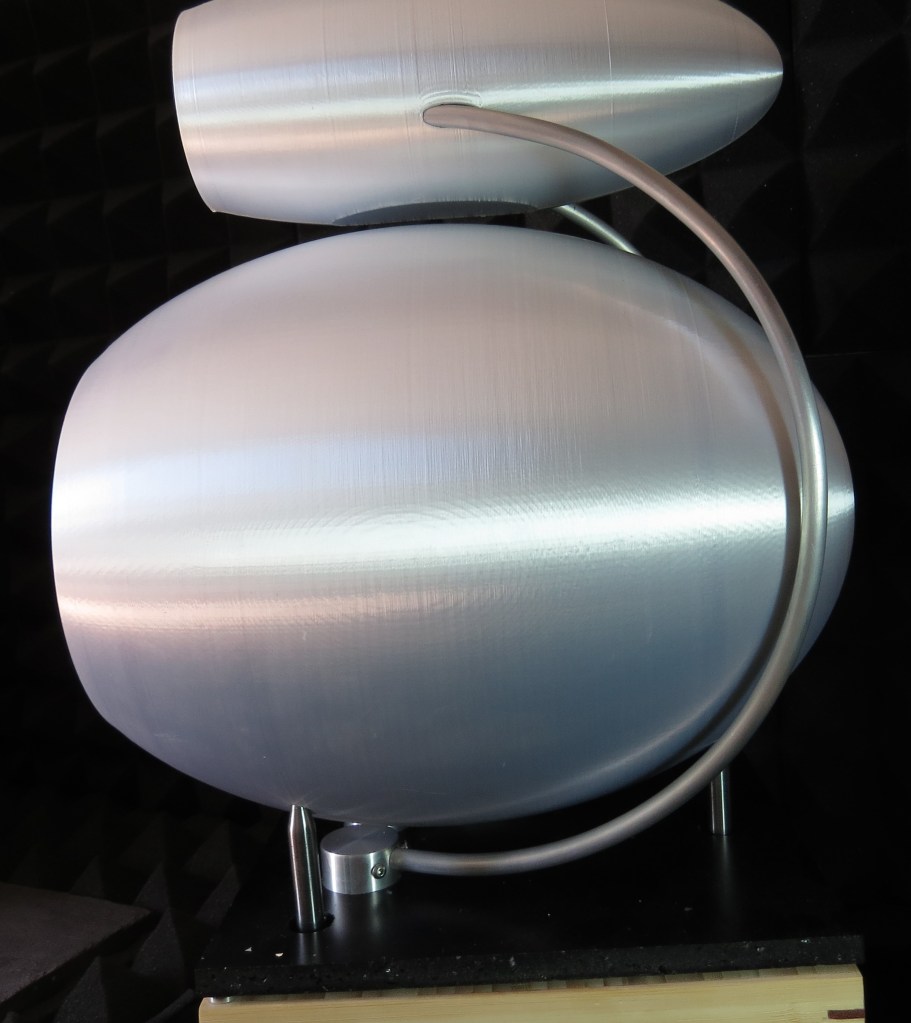

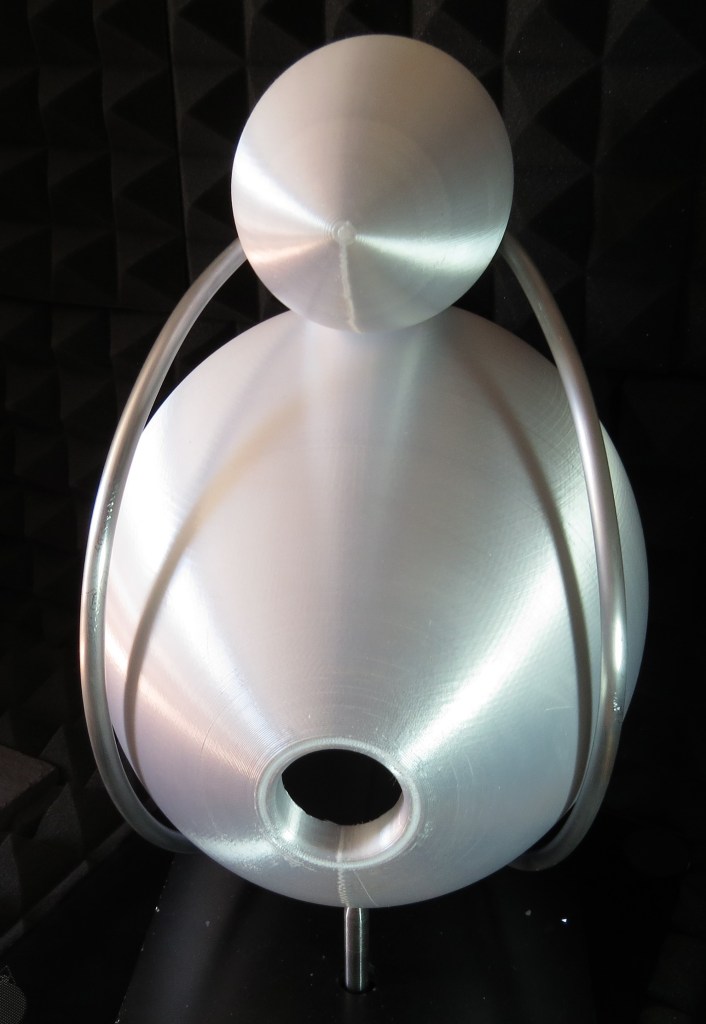

A loudspeaker that discards the conventional cuboid enclosure we have seen so many times before.
A single piece shell using modern 3d printing. Accurate to +/- 0.02mm time after time. Equal and even distribution of stresses throughout the entire enclosure.
Separate enclosures for each drive unit. Each designed to compensate for time alignment.
Cabinet vibration, created by the woofer, does not have any influence over the sound produced by the tweeter.
The result, crisp clear high frequency output.
Have a look, see what you think.
The specifications.
| Frequency Range (+/-3dB) | 30-25000 (Hz) * |
| Sound Pressure Level @ 1W | 88 (dB) |
| Crossover Frequency | 2,000 (Hz) |
| Crossover Type | 2 Way |
| Input Connection | 4mm Banana Connection & Screw Terminal |
| High Frequency Drive Unit | 1 x 25mm Soft Domed Ferro Fluid Cooled |
| Low Frequency Drive Unit | 1 x 5.25″ Glass Fibre Cone |
| Recommended Power Handling | < 60 W (RMS) <120 W (Peak) |
| Dimensions | 300,240,450 |
| Nett Weight | 14 Kg (Each) |
* Dependent on selected reflex tube
